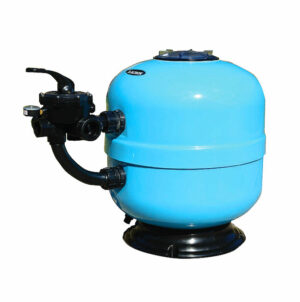

LSR-SUREFLOW Side Mount Filter – 30″ Dia
The Sureflow is the largest selling and most popular residential swimming pool sand filter sold and installed in Britain for more than 25 years. Over a quarter of a million have been commissioned. The LSR swimming pool sand filters range is ideally suited to permanent in-ground residential indoor or outdoor pools.

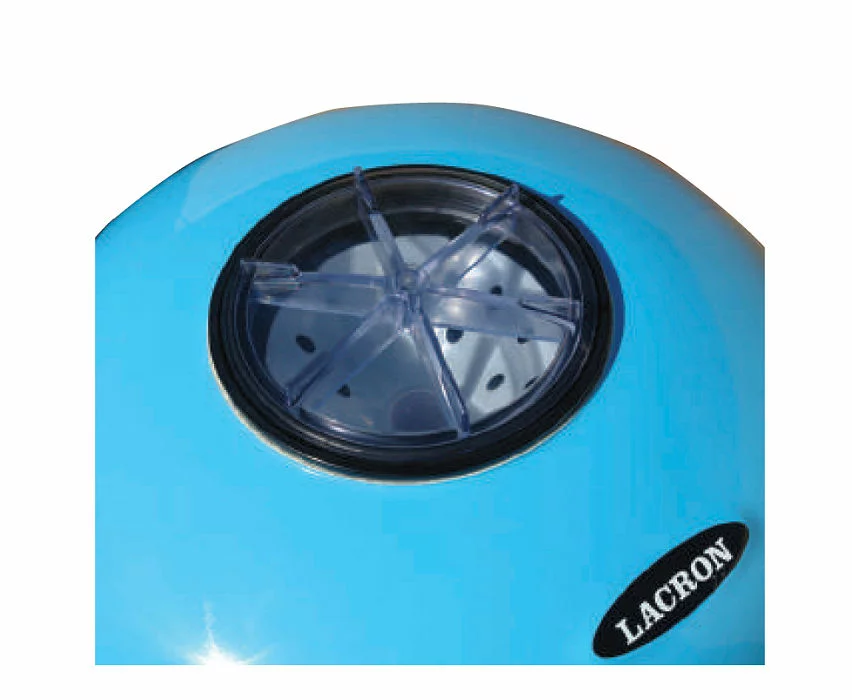

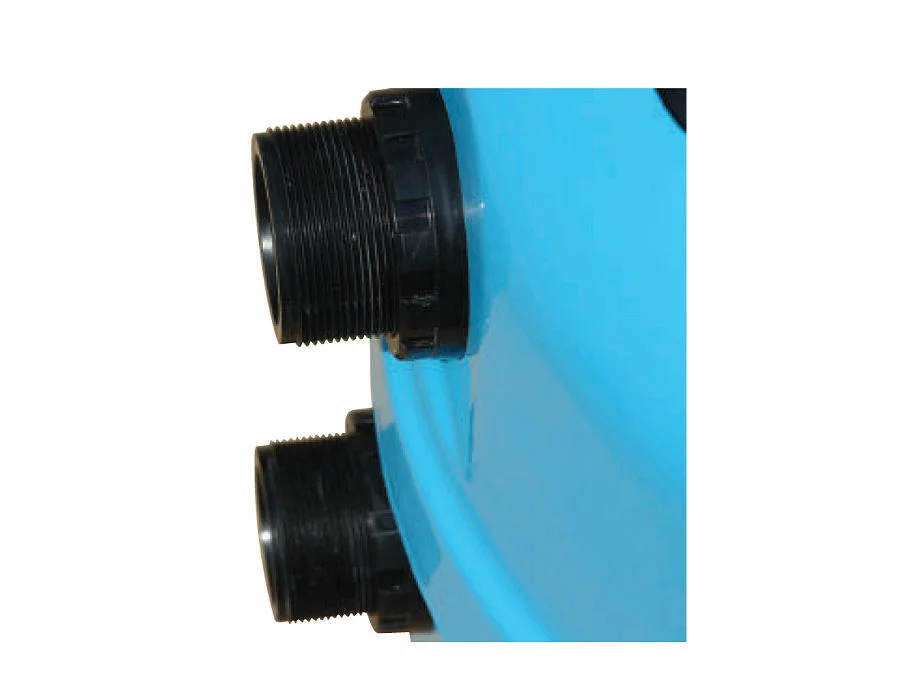

The main tank structure is made from extremely hard wearing (injection moulded) glass reinforced polyester. A smooth high gloss internal and external finish ensures a free flow and easy cleaning. The side mounted multi-port valve configuration together with the large clear lid access (230mm diameter) allows servicing of interior without the need to disturb the connecting pipe-work. The clear lid provides an excellent visual display of the water passing through, particularly useful when back-washing the filter. Combined with the low head loss underdrain systems and connection pipe-work an LSR swimming pool sand filter is one of the most efficient and cost effective on the market.
Lacron sand filters for swimming pool come complete with multiport & pressure gauge.
These sand filters are capable of being filled solely with filter sand for domestic filters, the use of Pea Gravel is normally for commercial installations.
The use of Pea gravel is primarily to allow a more even flow around the bottom of the filter, and reduce bacterial growth in the dead spot of the filter & increase the effectiveness of the backwash process, but due to the medium flow rate sand filters used for domestic pool, this is not necessary in smaller filter diameters. If however these filters are to be used in a commercial environment or in 24″ diameter & larger filters, then pea gravel is recommended, due to the size of the dead zone below the laterals.
Should you wish to order the pea gravel for your filter, please look at the media table below to order the required amount of sand & gravel for your size of filter.
Always fill your filter 1/3 full of water before filling with any filter media, as this will help to lessen the impact of the media hitting the fragile laterals in the bottom of the filter. If you are using Pea Gravel, you must ensure that the gravel forms a level layer at the bottom of the filter first, and only just covers the laterals, if you over fill with Pea Gravel you will reduce the efficiency of your filter by reducing the depth & area of filtration available.
Flow Rate GuideLSR-16 filter with 1 1/2″ Multiport Valve – Designed to give a flow rate of 6.5M³/hour.
LSR-18 filter with 1 1/2″ Multiport Valve – Designed to give a flow rate of 8.5M³/hour.
LSR-24 filter with 1 1/2″ Multiport Valve – Designed to give a flow rate of 14.5M³/hour.
LSR-30 filter with 2″ Multiport Valve – Designed to give a flow rate of 22.5 M³/hour.
LSR-36 filter with 2″ Multiport Valve – (Special Order) Designed to give a flow rate of 26 M³/hour.
LSR-36 filter with 3″ Multiport Valve – (Special Order) Designed to give a flow rate of 31 M³/hour.
LSR-42 filter with 3″ Multiport Valve – (Special Order) Designed to give a flow rate of 43 M³/hour.
Media Charge Guide16″ filter requires 50kg’s of filter sand- No gravel required
18″ filter requires 75kg’s of filter sand – No gravel required
24″ filter requires 125kg’s of filter sand – (Commercial 100kg of sand for 25kg of pea gravel)
30″ filter requires 200kg’s of filter sand – (Commercial 150kg of sand for 50kg of pea gravel)
36″ filter requires 400kg’s of filter sand – (Commercial 325kg of sand for 75kg of pea gravel)
42″ filter requires 550kg’s of filter sand – (Commercial 450kg of sand for 100kg of pea Gravel)
