Description

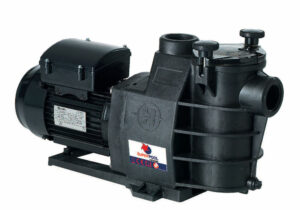

Hayward SuperPool Pump – Single Phase
SuperPool PumpThe Hayward SuperPool pump is an ideal replacement pump at great value. The pump has the amazing AO Smith motor, and the wet end comes with 1 1/2″ female threads. 2 year warranty as standard, these pumps will suit any pool. Salt water Compatable
It is ideal for replacing an existing pump or for a new installation.
High performance: Noryl® impeller
Resists chemical and saline corrosion under normal use conditions.
Silent: low sound emission
Economical: low electricity consumption.
Resistant engine with high output.

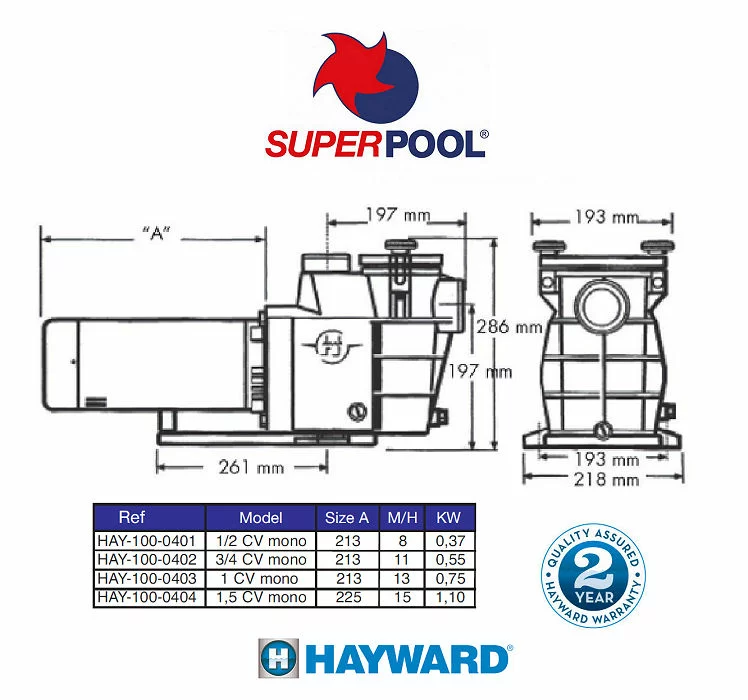

Specifications:Delivery: up to 15 m³/h
Power supply: single phase 50 Hz
Power: from 0.37 kW up to 1.1 kW
Maximum operating pressure: 2 bar
Temperature of pumped liquid: from 0 °C to 40 °C
Pump Power Conversions |
KiloWatts |
Horse Power |
Flow Rate |
0.375 Kw |
0.5 HP |
8.0m³/h |
0.55 Kw |
0.75 HP |
11.0m³/h |
0.75 Kw |
1.0 HP |
13.0m³/h |
1.12 Kw |
1.5 HP |
15.0m³/h |
Please Note that the 0.75hp pump is only available in single phase.
Please note that most domestic pumps are Single Phase 240v pumps. Three Phase 415V pumps are very uncommon in a domestic environment. If you are unsure, you must check with your qualified Electrician who can advise you on your requirements.
The Pump is configured with internal 1 1/2″ female parallel threads for both the horizontal intake and the vertical discharge.
We recommend you use P.T.F.E tape or LA-CO Slic-Tite to apply to the male thread on your pump unions. please order your unions if required from the pipework section. The 1 1/2″ male threaded unions are ideal if you are connecting your remaining pipework with normal solvent weld fittings.
We also recommend the use of the Anti-vibration pad, as this allows the pump to be installed onto various floor surfaces with the added sound & vibration deadening benefit the pads give.
Warranty & Returns
Warranty
This Product has a 2 year warranty on the pump wet end, 2 year warranty on the pump motor and 1 year warranty on the mechanical seal.
Please note that all pumps are factory wet tested, so a small amount of water may still be present in the pump.
Warranty will be void if damage is due to chemical or sand/grit damage to the seals of this pump. This pump cannot be run dry as this WILL damage the shaft seal.
Returns
This product is fully CE but as an Electrical product please ensure it is fitted by a Part P qualified Electrician. Warranty claims due to incorrect wiring of these pumps will not be classed as a valid claim.
N.B. The correct wiring diagram is found on the inside of the Electrical connection terminal box.
