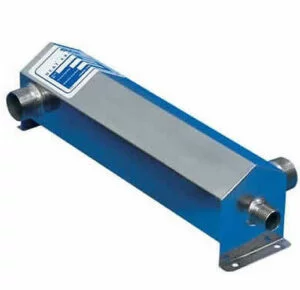

Stainless Steel Heat Exchanger

Made from 316 grade stainless steel, these heat exchangers are ideal for pool use. They allow you to utilise your existing house boiler to heat your pool.

From £309.00 inc VAT

Product reference: 9258 Category:

Description

Stainless Steel Heat Exchanger
Made from 316 grade stainless steel, these heat exchangers are ideal for pool use. They allow you to utilise your existing house boiler to heat your pool.
Specifications:
¦ Ideal for installation on a household heating system.
¦ 316 Grade high quality stainless steel. Not Suitable for use with Saltwater Pools
¦ Built in 0.5″ thermostat probe pocket.
¦ 28mm Male LPHW Connections.
¦ Pre-Drilled fixings allow for floor or wall mounting.
¦ 1 1/2″ Male Pool water connections.
¦ Ideally should be installed with swimming pool composite brass/ABS unions due to the high temperatures applied to the thread.
Note: The value of the unit should be matched to or below the heat
value of the household heater.
Temperature control is usually via a ‘call for heat’ from a thermostat usually on the boiler link feed (normally open circuit, either completeing the circuit & firing up the boiler, or controlling a zone valve on the low pressure hot water supply).
The thermostats can be the older style analogue Honeywell type stats which give a course form of temperature control, or via the LAE digital thermostats which offer digital accuracy.
Both temperature probes for the stats will fit neatly into the probe pocket on the heat exchanger, minimising installation time.
Heat Exchanger Dimensions & Maximum Heat Output
60,000 BTU maximum output, weighing 2.5kgs and measuring W:116 x L:240 x D:140mm
100,000 BTU maximum output, weighing 3kgs and measuring W:116 x L:287 x D:140mm
130,000 BTU maximum output, weighing 4.5kgs and measuring W:116 x L:417 x D:140mm
170,000 BTU maximum output, weighing 6kgs and measuring W:116 x L:543 x D:140mm
230,000 BTU maximum output, weighing 7.5kgs and measuring W:116 x L:695 x D:140mm
460,000 BTU maximum output, weighing 17.5kgs and measuring W:220 x L:775 x D:140mm
