Description

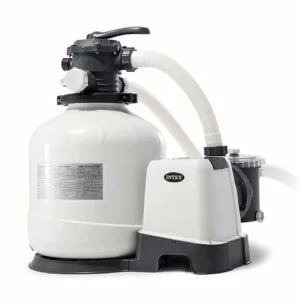

Intex Krystal Clear Filter Pump Pack – 12m³/h
Intex Krystal Clear Filter Pump Pack – 12m³/h. This Sand filter combo pack is capable of filtering 2640 Gallons / Hour. Comes with a 0.75hp Pump & 16″ Diameter Filter.

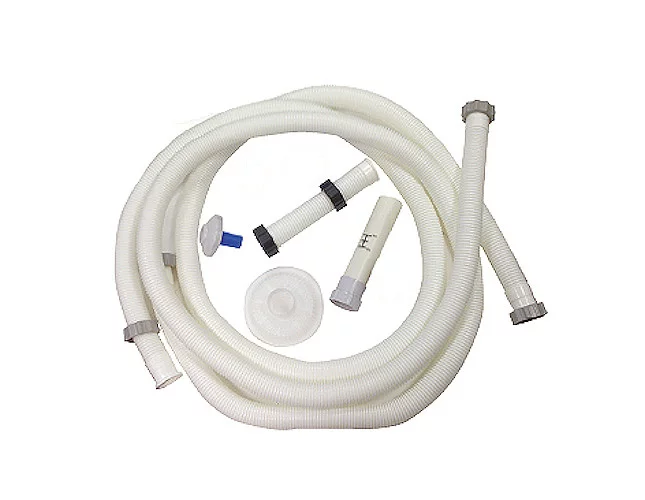

The Intex Krystal Clear systems come with a six position top mounted multi-port valve, the pump and filter pipework size is Intex 1.5″, and pre-formed skid base for pump & filter to allow for easy installation on varying surfaces.
FEATURES

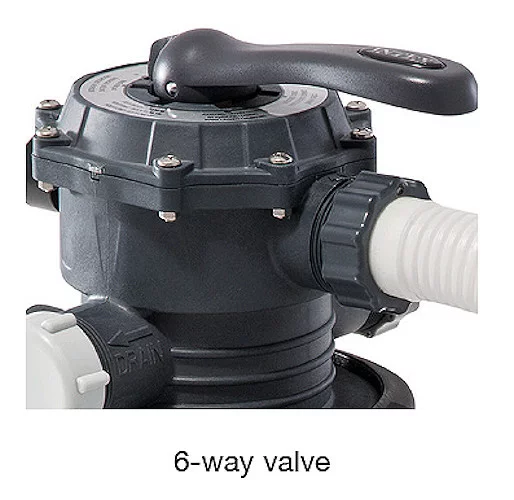

Six position top mount valve with flange connection and clamping.
Maximum operating pressure 2bar or 30 Psi.
Maximum operating temperature 35°C Max.

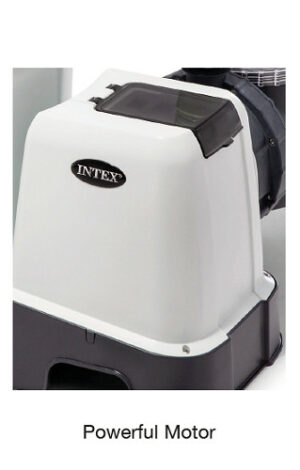

Single phase pump with IP45 protection class.
The tanks come with a 1 year warranty, the pumps come with a 1 year warranty.
………………………………………………………
Intex Krystal Clear Flow Rate Guide10″ Diameter filter – 1 1/2″ Mulitport Valve & 0.25hp Pump – Designed to give a flow rate of 4M³/hour.
12″ Diameter filter – 1 1/2″ Mulitport Valve & 0.5hp Pump – Designed to give a flow rate of 6M³/hour.
14″ Diameter filter – 1 1/2″ Mulitport Valve & 0.6hp Pump – Designed to give a flow rate of 8M³/hour.
16″ Diameter filter – 1 1/2″ Mulitport Valve & 0.75hp Pump – Designed to give a flow rate of 12M³/hour.
Media Charge Guide
10″ Diameter filter requires 8.5kg’s of glass media (Grade 1) or 12kg of filter sand.
12″ Diameter filter requires 16kg’s of glass media (Grade 1) or 23kg of filter sand.
14″ Diameter filter requires 25kg’s of glass media (Grade 1) or 35kg of filter sand.
16″ Diameter filter requires 38kg’s of glass media (Grade 1) or 55kg of filter sand.
Tank Filling InstructionsAlways fill you filter 1/3 full of water before filling with any filter media, as this will help to lessen the impact of the media hitting the fragile laterals in the bottom of the filter. If you are using Pea Gravel, you must ensure that the gravel forms a level layer at the bottom of the filter first, and only just covers the laterals, if you over fill with Pea Gravel you will reduce the efficiency of your filter by reducing the depth & area of filtration available.
