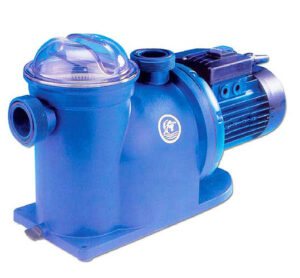

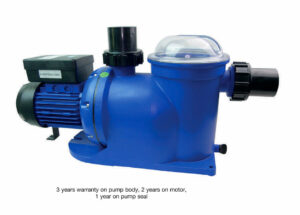

AG Swimming Pool Pump – 0.33HP

These pumps are ideal for private swimming pools, for water tanks and light industrial applications. Suitable for seawater and water treated with chlorine and bromine.

£302.00 inc VAT

In stock

Product reference: 7572 Category:


AG Swimming Pool Single Phase Pump
These pumps are ideal for private swimming pools, for water tanks and light industrial applications.
Suitable for seawater and water treated with chlorine and bromine.


Delivery: up to 11 m³/h
Head: up to 13 m
Power supply: single phase 50 Hz
Power: from 0.2 kW up to 1.50 kW
Maximum operating pressure: 2 bar
Temperature of pumped liquid: from -10 °C to 40 °C

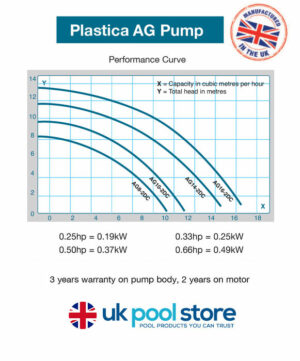

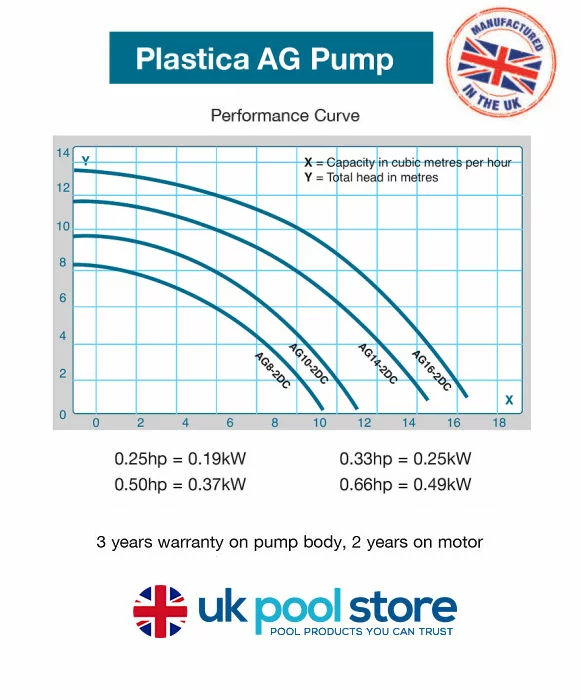

Pump Sizes & Flow Rates
AG8 – 0.25hp – 0.29kw – 5.8m³/h at 6m head – max of 8m head.
AG10 – 0.33hp – 0.36kw -6.3m³/h at 6m head – max of 10m head.
AG14 – 0.50hp – 0.49kw -10m³/h at 6m head – max of 12m head.
AG16 – 0.66hp – 0.67kw -11m³/h at 6m head – max of 13m head.

Pump Power Conversions
KiloWatts Horse Power
0.18 Kw 0.25 HP
0.25 Kw 0.33 HP
0.375 Kw 0.5 HP
0.55 Kw 0.75 HP
0.75 Kw 1.0 HP
1.12 Kw 1.5 HP
1.5 Kw 2.0 HP
2.25 Kw 3.0 HP

Please note that most domestic pumps are Single Phase 240v pumps. Three Phase 415V pumps are very uncommon in a domestic environment. If you are unsure, you must check with your qualified Electrician who can advise you on your requirements.
The Pump comes complete with 1 1/2″ Solvent Unions for both the horizontal intake & vertical discharge.
The pump is also complete with a specific lid tool for easy pump basket maintenance.
We recommend you use P.T.F.E tape or LA-CO Slic-Tite to apply to the male thread on your pump unions. please order your unions if required from the pipework section. The 1 1/2″ male threaded unions are ideal if you are connecting your remaining pipework with normal solvent weld fittings.
We also recommend the use of the Anti-vibration pad, as this allows the pump to be installed onto various floor surfaces with the added sound & vibration deadening benefit the pads give.

Warranty & Returns

This Product has a 3 year warranty on the pump wet end, 2 year warranty on the pump motor and 1 year warranty on the mechanical seal.

Please note that all pumps are factory wet tested, so a small amount of water may still be present in the pump.

Warranty will be void if damage is due to chemical or sand/grit damage to the seals of this pump. This pump cannot be run dry as this WILL damage the shaft seal.

This product is fully CE but as an Electrical product please ensure it is fitted by a Part P qualified Electrician. Warranty claims due to incorrect wiring of these pumps will not be classed as a valid claim.

N.B. The correct wiring diagram is found on the inside of the Electrical connection terminal box.

Should you require any further information, please email where we will respond to your request quickly.

Stock & Delivery

This product is a 1 – 3 day delivery direct from our supplier, and is currently in stock.

Delivery – Mainland UK

Orders placed before 2pm Monday to Friday we aim to dispatch on the same day, after 2pm will be the following working day. This does not include Bank Holidays, which are classed as non-working days. Should you require a Saturday delivery or have any other delivery enquiries, please email who will respond to your request quickly.

Try to include your mobile phone number in the checkout area so that our delivery drivers can contact you should they need any further assistance or clarification in delivering your order.

Please ensure you leave detailed information if your delivery address is hard to find or a new housing development. If you know there is a possibility of missing the delivery, you can at the checkout stage leave instructions for the delivery driver to leave without signature and place your goods with a neighbour or in a discreet place out of sight for your later retrieval.

Please note some areas including Scotland(post codes AB, FK, IV, KW, PA, PH, HS, KA, ZE, TR, DD,PH, PA, KY, AB, DD, KW, IV, HS), Isle of Wight, Isle of Man, will need extra carriage. We no longer ship to Jersey, Guernsey or Northern Ireland.


If you are unable to thoroughly check your delivery upon receipt, sign for it as UNCHECKED. If the package is damaged in any way, no matter how small, please sign for it as DAMAGED. We CANNOT CLAIM from our carriers for any damaged items that have not been signed for as UNCHECKED or DAMAGED.

If you sign for a delivery as OK, which you later find to be damaged, our carriers WILL NOT accept liability and you may be charged for the damaged items, in this case a delivery charge for replacement items WILL be made.

You may also like…

  • Product Reference: 11018

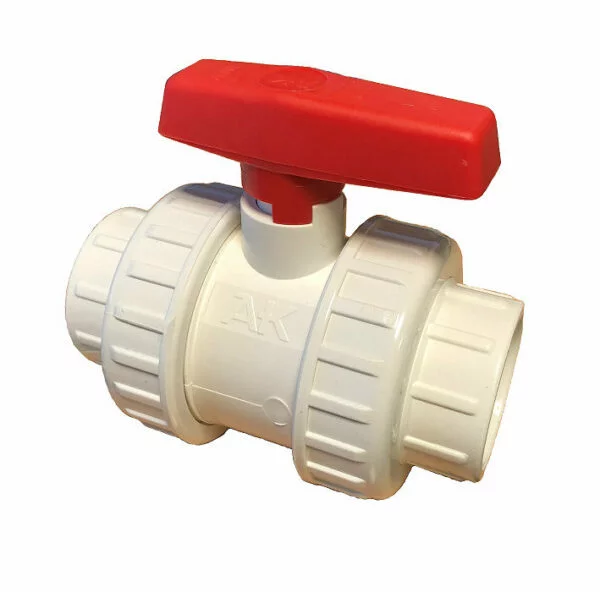

    Swimming Pool 1.5″ Double Union Ball Valve – AK

    £16.99 inc VAT
  • Product Reference: 10511

    Magic Lube II – Silicone Lubricant – 30g

    £11.99 inc VAT
  • Product Reference: 3257

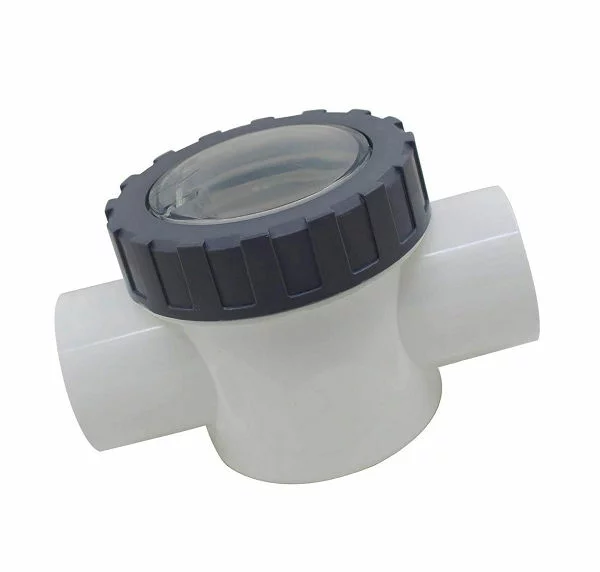

    Swimming Pool Serviceable Check Valve – 1 1/2″ Pipe Size

    £49.00 inc VAT
  • Product Reference: 893

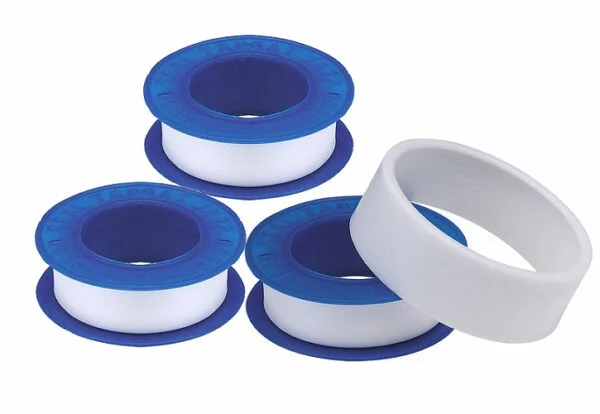

    Swimming Pool PTFE Thread Tape
